Trailed compost turner VCC1-3500
Maximum capacity for large composting plants: windrows up to 3.8 × 1.8 m with full control from the cab.
High-capacity trailed compost turner: 3,500×1,800 mm tunnel, 900 mm rotor and up to 1,500 m³/h. Hydraulic folding and approved for public roads.
Who this machine is for
The CAMPS VCC1-3500 compost turner is ideal for high-output farms and composting plants. It is operated hydraulically from a control panel installed in the tractor cab, allowing precise control of machine levelling, the hydraulic rear tailgate and dome folding for transport. Its rapid aerobic composting process produces quality compost in an 8 to 12 week cycle.
Practical benefits
- Up to 1.500 m³/h turning capacity: windrows up to 3.800 × 1.800 mm.
- Robust, well-balanced 900 mm rotor: efficiently turns the material from the inside out.
- HARDOX 450 and STRENX 700 steels: maximum strength and long service life.

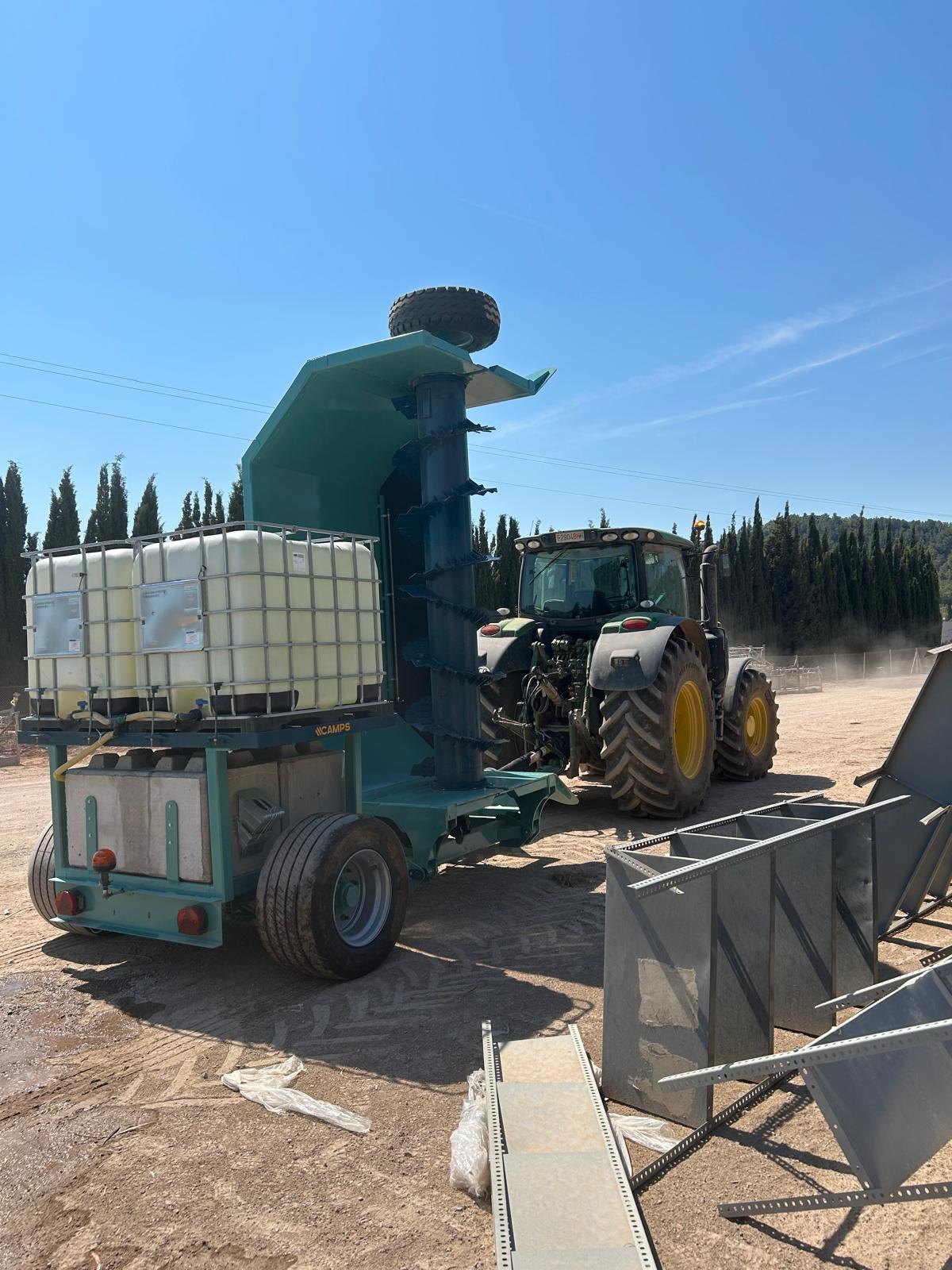

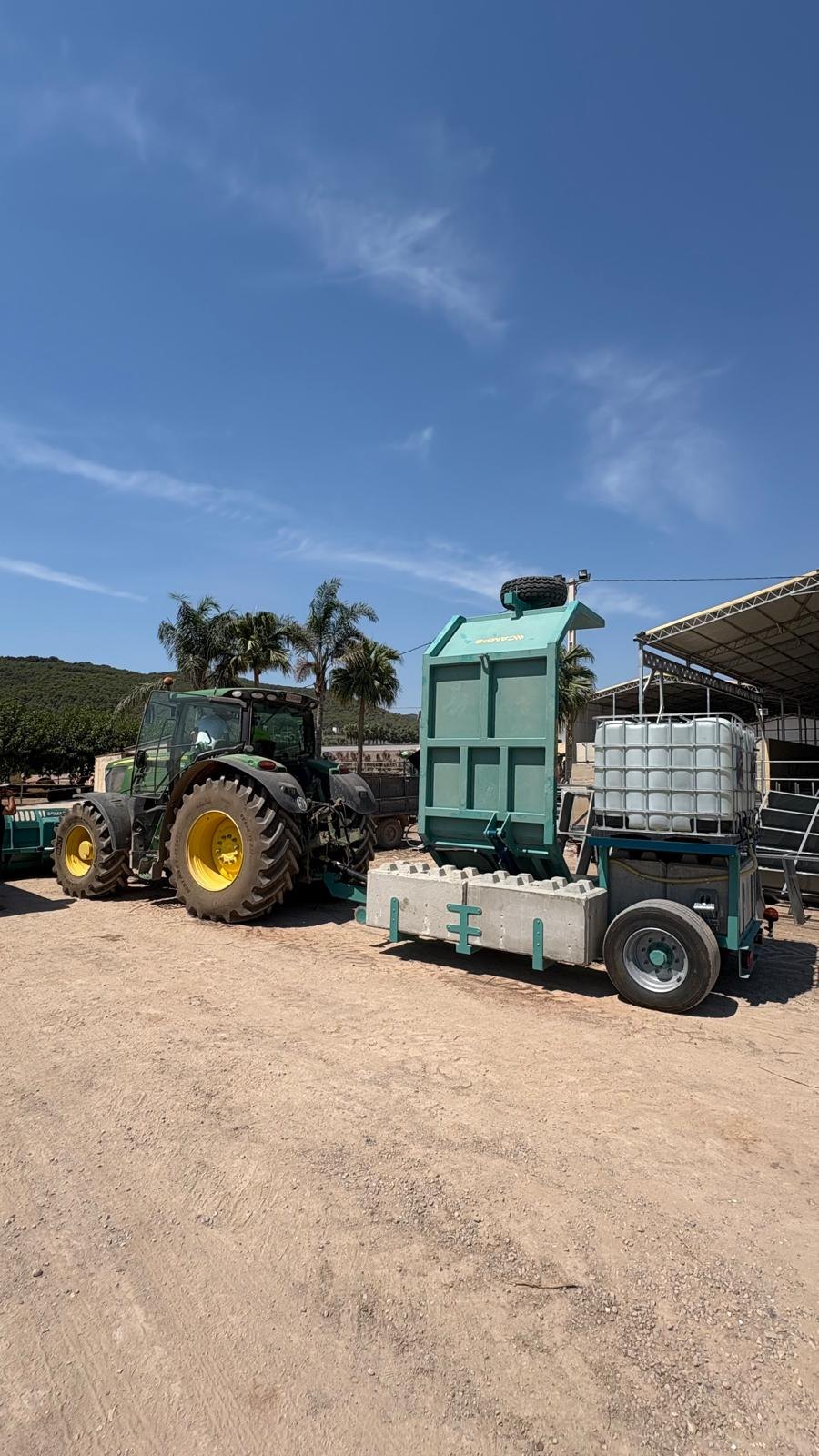

- Approved for use on public roads with hydraulic folding and 2.400 mm transport width.
- Simple, cost-effective maintenance: accessible greasing points every 8 hours of work.
Full specifications
Taken straight from the factory data sheet. No rounding.
| Tracción | Arrastre mediante tractor (homologada para vías públicas) |
|---|---|
| Tractor mínimo | 150 CV con marchas supercortas |
| Caudal hidráulico necesario | 60 l/min |
| Presión de trabajo | 190 bar |
| Ancho del eje de volteo | 3.500 mm |
| Túnel (ancho × alto) | 3.500 × 1.800 mm |
| Diámetro del rotor | 900 mm |
| Pila máxima | 3.800 × 1.800 mm |
| Capacidad de volteo | 1.000–1.500 m³/h |
| Velocidad ideal | 300–400 m/h |
| Longitud total | 4.150 mm |
| Anchura en transporte | 2.400 mm |
| Sistema de plegado | Hidráulico para transporte |
| Kit de riego | Preparada para 1 o 2 depósitos de 1.000 litros |
| Placas de desgaste | HARDOX 450 |
| Zonas estructurales | STRENX 700 |
| Engrase recomendado | Cada 8 horas de trabajo |
| Peso | 6.500 kg |
| Control | Panel de control hidráulico en cabina |
What buyers ask before they decide
What is the minimum tractor I need?
It depends on the model: from 40 hp (VCC-2000) up to 180 hp (VC-4500). The exact figure for this model is in the technical data block above.
How long until I get finished compost?
Between 8 and 12 weeks with proper turning and the correct moisture. We help you dial in the recipe from the first cycle.
Is it road-legal?
The trailed models (VCC and VC-4500) are type-approved for public roads. Mounted models travel attached to the tractor.
How does after-sales support work?
Directly from our factory in Mazaleón (Spain). Spare parts in stock and phone support from the people who built your machine.
