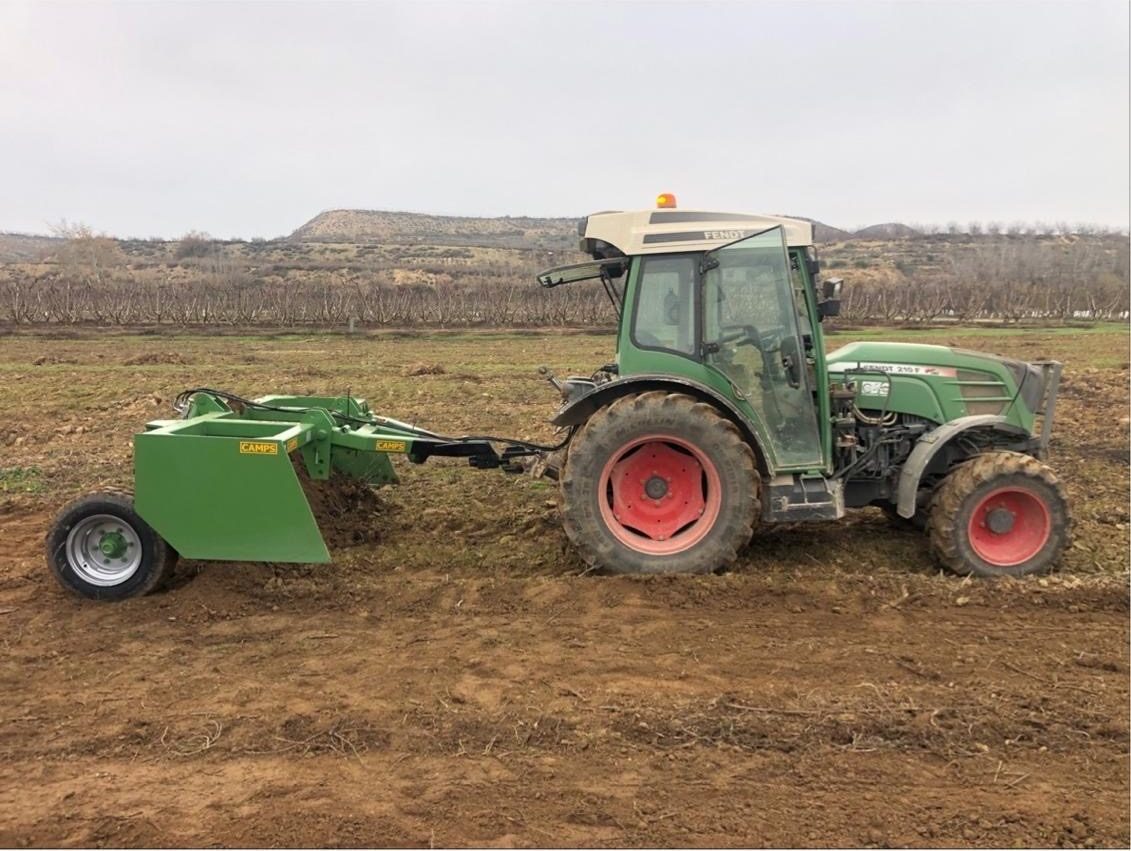

Hydraulic Trailed Leveller PN
Land levelling and grading with a structural tube chassis and wear-resistant blade, ready for road travel.
Hydraulic trailed grader approved for public roads. Six models with working widths from 2.0 to 3.0 m for tractors from 55 to 130 CV.
Who this machine is for
The CAMPS hydraulic trailed grader is designed for pulling in agricultural field margins, levelling and profiling land, clearing farms and earthworks areas, and for public works and earthmoving. Its reinforced construction with structural tube and heavy-gauge plates ensures quality and strength in the most demanding jobs.
Available models
- PN-2000 · 2,0 m · 850 kg · 55 CV
- PN-2200 · 2,2 m · 880 kg · 70 CV
- PN-2400 · 2,4 m · 910 kg · 85 CV
- PN-2600 · 2,6 m · 940 kg · 100 CV
- PN-2800 · 2,8 m · 970 kg · 115 CV
- PN-3000 · 3,0 m · 1.000 kg · 130 CV
Practical benefits
- 100×100×8 structural tube chassis with central body in 8 mm plate and 15 mm reinforcements.
- 150×15 wear-resistant blade: long service life, even on hard ground.
- Approved for use on public roads with documentation included.
- Professional finish: primer and two coats of two-component epoxy enamel.
Full specifications
Taken straight from the factory data sheet. No rounding.
| Modelos | PN-2000 · PN-2200 · PN-2400 · PN-2600 · PN-2800 · PN-3000 |
|---|---|
| Ancho de trabajo | 2,0 a 3,0 m según modelo |
| Peso | 850 a 1.000 kg según modelo |
| Tractor | 55 a 130 CV según modelo |
| Chasis | Tubo estructural de 100×100×8 |
| Cuerpo central | Chapa de 8 mm con refuerzos en chapa de 15 mm |
| Laterales | Chapa de 20 mm con refuerzos interiores |
| Cuchilla | Antidesgaste de 150×15 |
| Ruedas | 10/75-15.3" de 18 lonas |
| Acabado | Capa de imprimación y dos capas de esmalte epoxi de dos componentes |
| Homologación | Para circular por vías públicas (documentación) |
| Opcionales | Ruedas 11,5/80/15,3" · pistón de inclinación en rueda |
What buyers ask before they decide
What is the minimum tractor I need?
It depends on the model: from 40 hp (VCC-2000) up to 180 hp (VC-4500). The exact figure for this model is in the technical data block above.
How long until I get finished compost?
Between 8 and 12 weeks with proper turning and the correct moisture. We help you dial in the recipe from the first cycle.
Is it road-legal?
The trailed models (VCC and VC-4500) are type-approved for public roads. Mounted models travel attached to the tractor.
How does after-sales support work?
Directly from our factory in Mazaleón (Spain). Spare parts in stock and phone support from the people who built your machine.
